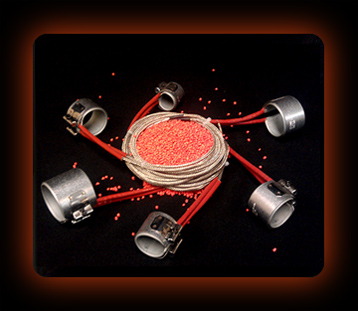

Hotset UK manufacture a wide range of Nozzle Heaters with various clamping methods and lead exits. All sizes below are rated 240 Volt, but other voltages are available.
Size
Wattage
Size
Wattage
Size
Wattage
Size
Wattage
25 x 25 100 32 x 25 115 38 x 25 140 45 x 25 175
25 x 30 100 32 x 30 140 38 x 30 160 45 x 30 185
25 x 32 120 32 x 32 150 38 x 32 170 45 x 32 200
25 x 35 130 32 x 35 160 38 x 35 190 45 x 35 225
25 x 38 140 32 x 38 175 38 x 38 200 45 x 38 240
25 x 40 150 32 x 40 180 38 x 40 225 45 x 40 250
25 x 45 165 32 x 45 200 38 x 45 275 45 x 45 275
25 x 50 180 32 x 50 230 38 x 50 275 45 x 50 325
30 x 25 100 35 x 25 140 40 x 25 140 50 x 25 180
30 x 30 130 35 x 30 150 40 x 30 175 50 x 30

220

30 x 32 140 35 x 32 160 40 x 32 180 50 x 32 235
30 x 35 150 35 x 35 175 40 x 35 150 50 x35 250
30 x 38 160 35 x 38 190 40 x 38 220 50 x 38 280
30 x 40 175 35 x 40 200 40 x 40 230 50 x 40 300
30 x 45 200 35 x 45 225 40 x 45 250 50 x 45 325
30 x 50 220 35 x 50 250 40 x 50 280 50 x 50 375
styles
HS-1
HS-1
HS-1 Leads out of thickness. For use in restricted areas with low profile lead exit, sizes range from 25mm diameter to 50 diameter fitted with or without steel over braid. When ordering state diameter, width, watts, volts, and lead length. The sizes listed above are available from stock at special prices for HS-1 exit but larger sizes are available.
HS-2
HS-2
HS-2 Leads out of width. Used in most applications with flexible leads exiting from either side of the clamp gap. When ordering state diameter, width, watts, volts, and lead length.
HS-3
HS-3
HS-3 Leads axial exit out of nozzle box. For use only where there is sufficient clearance around the nozzle to allow for the terminal housing. when ordering state diameter, width, watts, volts and lead length.
HS-4
HS-4
HS-4 Press Fit. Used where space is restricted to a minimum and there is insufficient room for a clamping arrangement. When ordering state diameter, width, watts, volts, and lead length.
Brass Sealed Nozzle
Standard HS1 Nozzle
Stainless Sealed Nozzle
