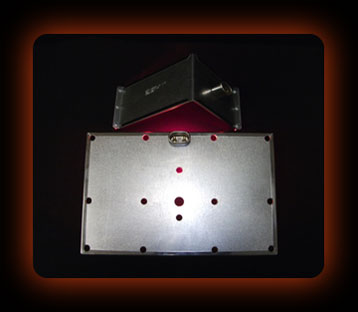

mica plate
Hotset UK manufacture Mica Plate Heaters to customer specification with a variety of termination options and shapes. Plates can also be manufactured as Discs, Box Shapes, L Shapes and U Shapes and can also be supplied with 3, 6 and 8mm thick Clamping Plates.
applications
Used widely in the Extrusion Industry to heat Profile Tools and Dies

technical
Outer material
Stainless Steel or Aludip
Insulation material
High temperature phlogopite mica
Standard thickness
4mm approx
Winding material
High quality 80/20 NiCr
Voltage supply
up to 480 volts
Watt density
3.5 watts cm2
Maximum temperature
up to 300 °C
Resistance tolerance
+10% - 5%
Wattage tolerance
+5% - 10%

Hotset UK can manufacture Mica Plate Heaters with a wide variety of termination options depending on the type of application and customer requirement. Options as listed below.



  • 2 Pin Socket
  • 3 Pin Euro Socket
  • Post Terminals
  • Ceramic Junction Block
  • Flying Leads.
  • Braided Leads
  • Conduit
  • Silicone Leads
  • Strain Relief Clips or Grip Glands.
Click here for available terminal boxes.
