mica band heater

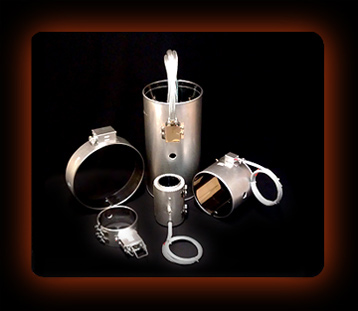

Hotset UK manufacture Mica Insulated Band Heaters to an excellent standard and to customer specification, which includes Mica Cylindrical Heaters, Plate Heaters, Box Shape Heaters, "L" Shape Heaters, and Segment Heaters. All of our Mica Heaters are PAT tested to the Industry Standard of 1200 volts to ensure maximum performance.
application
Used widely in the Injection Moulding, Blow Moulding and Extrusion Industries.

technical
Outer material
Stainless Steel or Aludip
Insulation material
High temperature phlogopite mica
Standard thickness
4mm approx
Winding material
High quality 80/20 NiCr
Voltage supply
up to 480 volts
Watt density
3.5 watts cm2
Maximum temperature
up to 300 °C
Resistance tolerance
+10% - 5%
Wattage tolerance

+5% - 10%

terminatio-header
Hotset UK can manufacture Mica Band Heaters with a wide variety of termination options depending on the type of application and customer requirement. Options as listed below.

  • 2 Pin Socket
  • 3 Pin Euro Socket
  • Post Terminals
  • Ceramic Terminal Block
  • Flying Leads.
  • Braided Leads
  • Conduit
  • Silicone Leads
  • Strain Relief Clips or Grip Glands.
Axial
Tangential
Radial
axial tangental radial

Click here for available terminal boxes.
