ceramic heaters

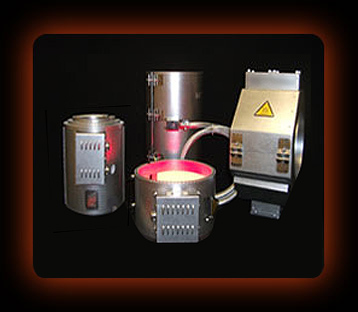

Hotset UK manufacture Ceramic Insulated Band Heaters to an excellent standard and to customer specification, which includes Ceramic Cylindrical Heaters, Segment Heaters, Air Cooled Shrouds and Tower Heaters. All of our Ceramic Heaters are PAT tested to the Industry Standard of 1200 volts which would ensure maximum performance. We can also refurbish Ceramic Heaters at a reduced price of a new heater providing the outer casing is re-usable.
applications
For heating press plastification cylinders for Injection, Blow Moulding and Extrusion Machines.

technical
Outer material
Stainless Steel or Aludip
Insulation material
Ceramic steatite grade 211
Standard thickness
11mm approx
Winding material
High quality 80/20 NiCr wire
Voltage supply
up to 480 volts
Watt density
7 watts cm2
Maximum temperature
up to 450 °C
Resistance tolerance
+10% - 5%
Wattage tolerance
+5% - 10%
termination

Hotset UK can manufacture Ceramic Band Heaters with a wide variety of termination options depending on the type of application and customer requirement. Options as listed below.

  • 2 Pin Socket
  • 3 Pin Euro Socket
  • Post Terminals
  • Ceramic Terminal Block
  • Flying Leads.
  • Braided Leads
  • Conduit
  • Silicone Leads
  • Strain Relief Clips or Grip Glands.
Axial
Tangential
Radial
axial
tangental
radial

Click here for available terminal boxes.
